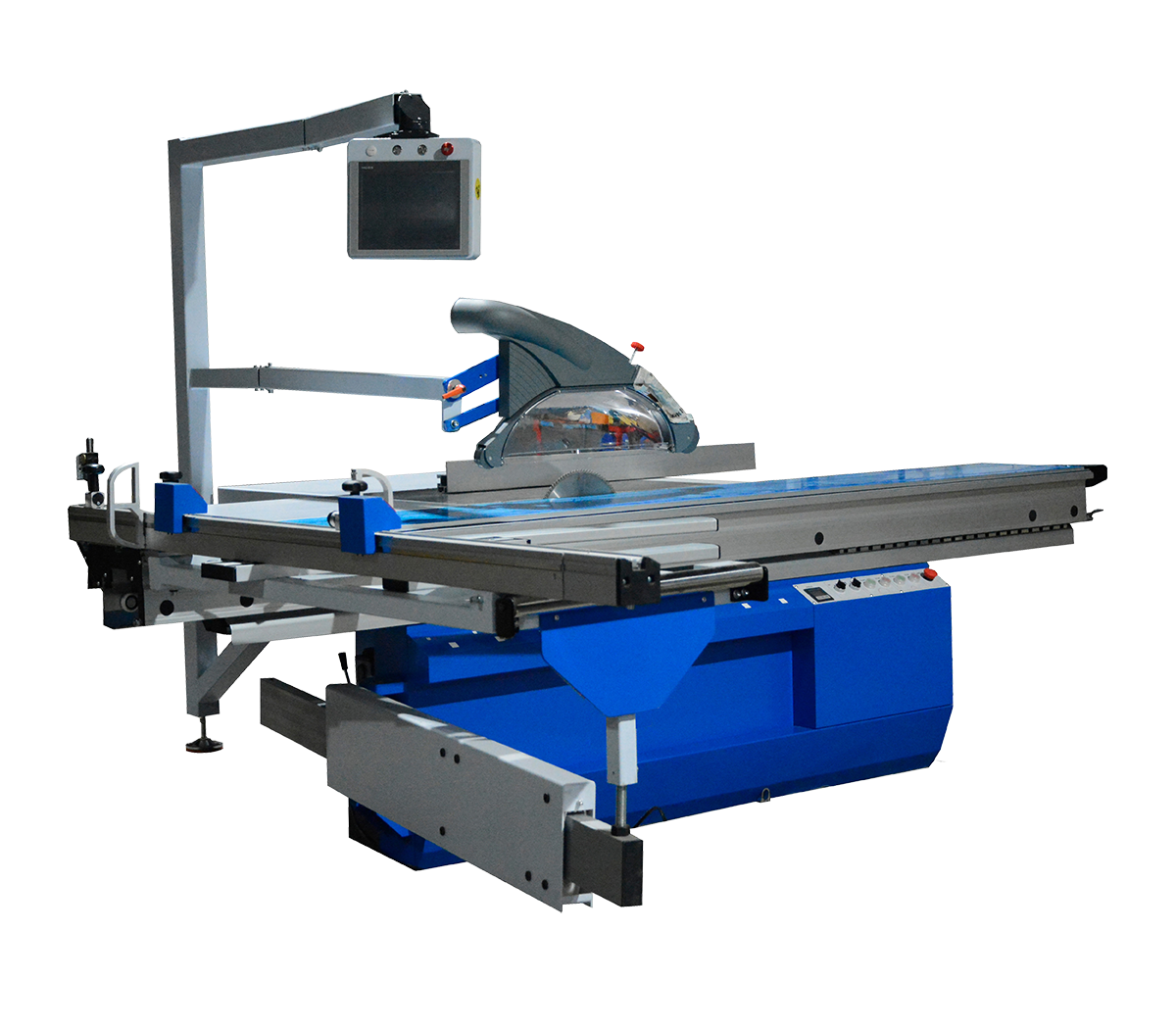

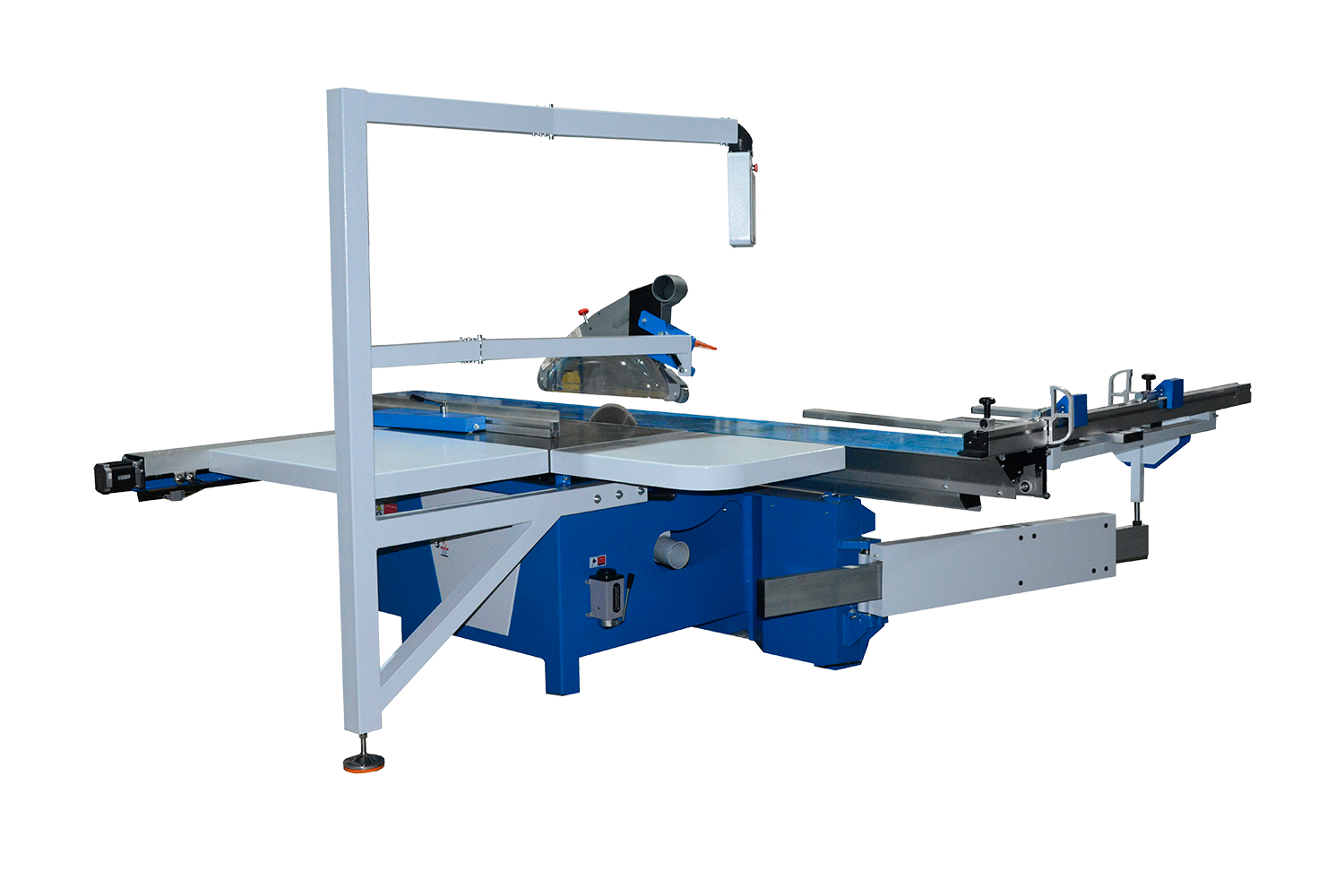

J-CNC3200
Panel SawINQUIRE NOW
Product Parameters

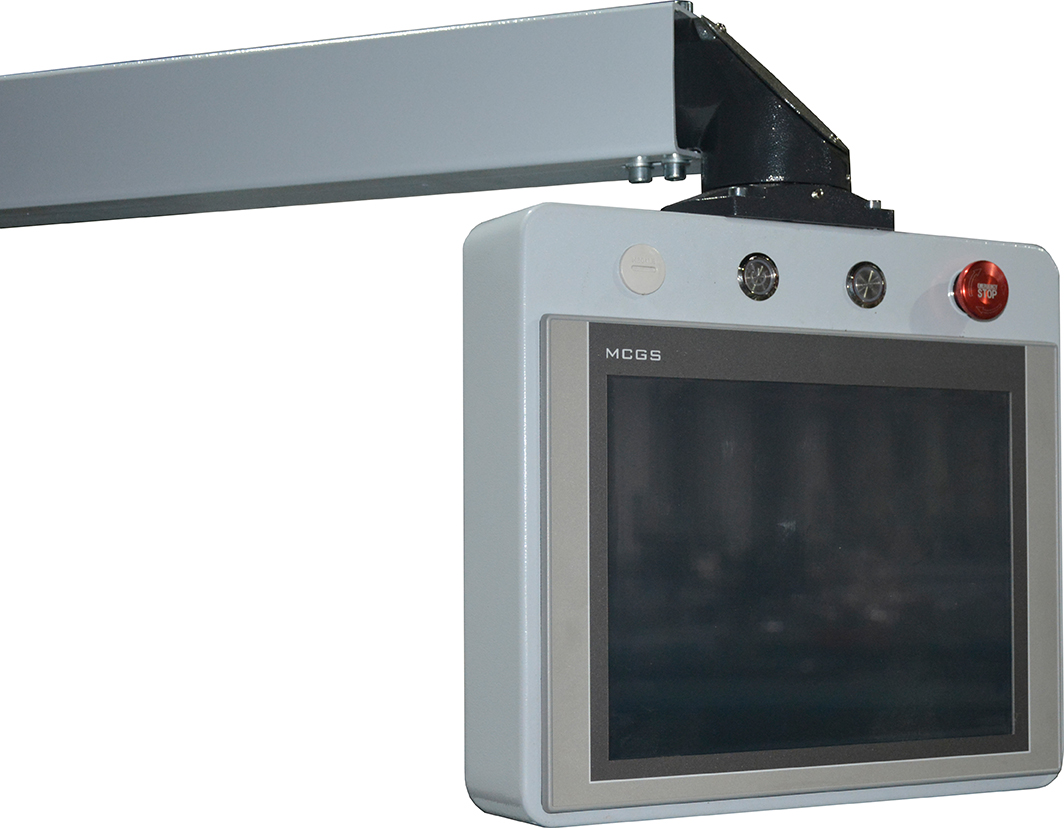

CONTROL TOUCHSCREEN
An intuitive, modern interface that allows operators to easily manage all machine functions. From adjusting heights and tilts to handling cutting programs, every operation is performed with simple touches. Enhances efficiency, minimizes errors, and delivers a professional, user-friendly experience.

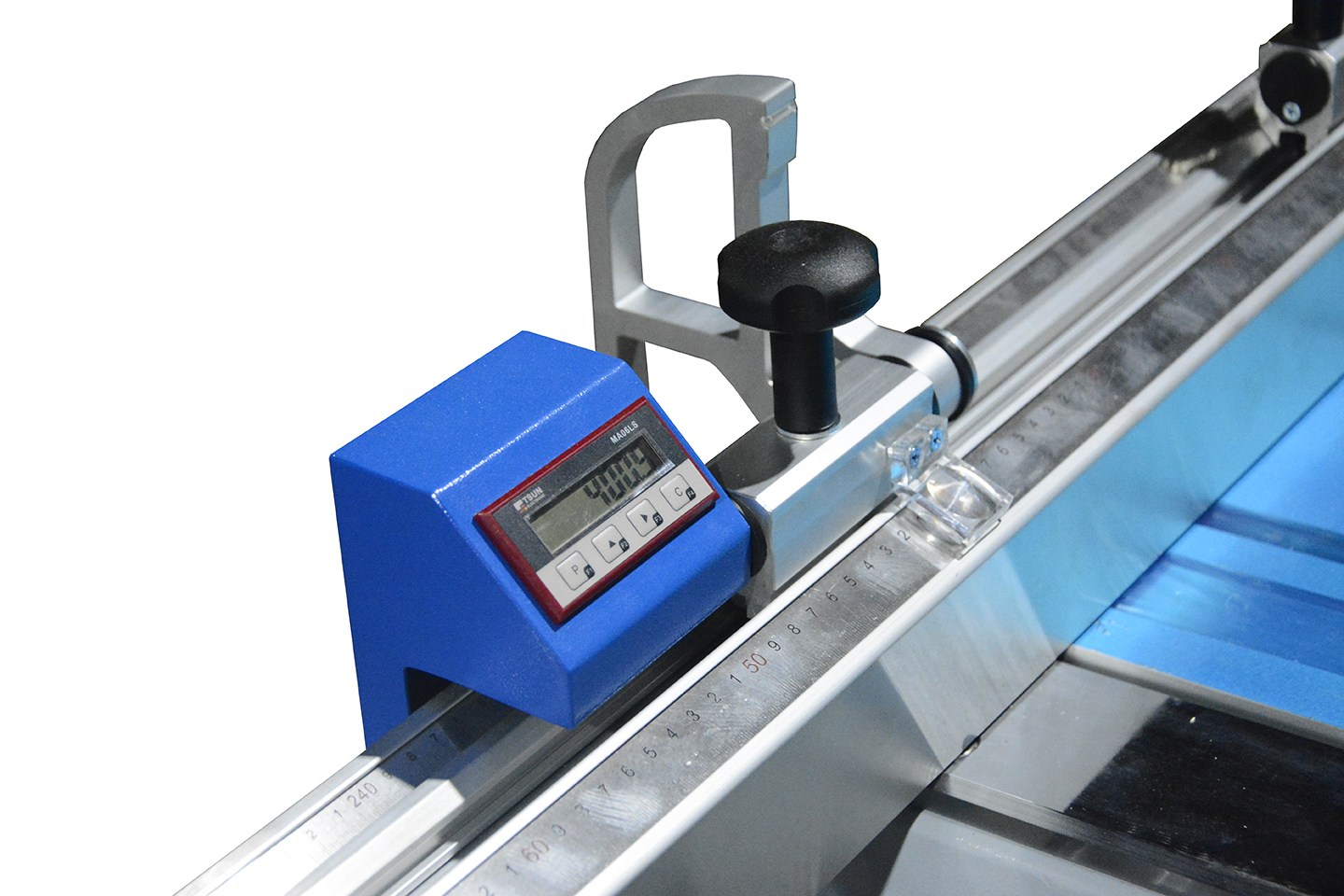

DIGITAL DISPLAY CROSS-CUT FENCE (±)
Enables precise angular cuts through its digital display system, allowing operators to quickly adjust cutting positions.
Perfect for applications demanding flawless finishes, it saves time on every operation while ensuring consistent results for repetitive cutting tasks

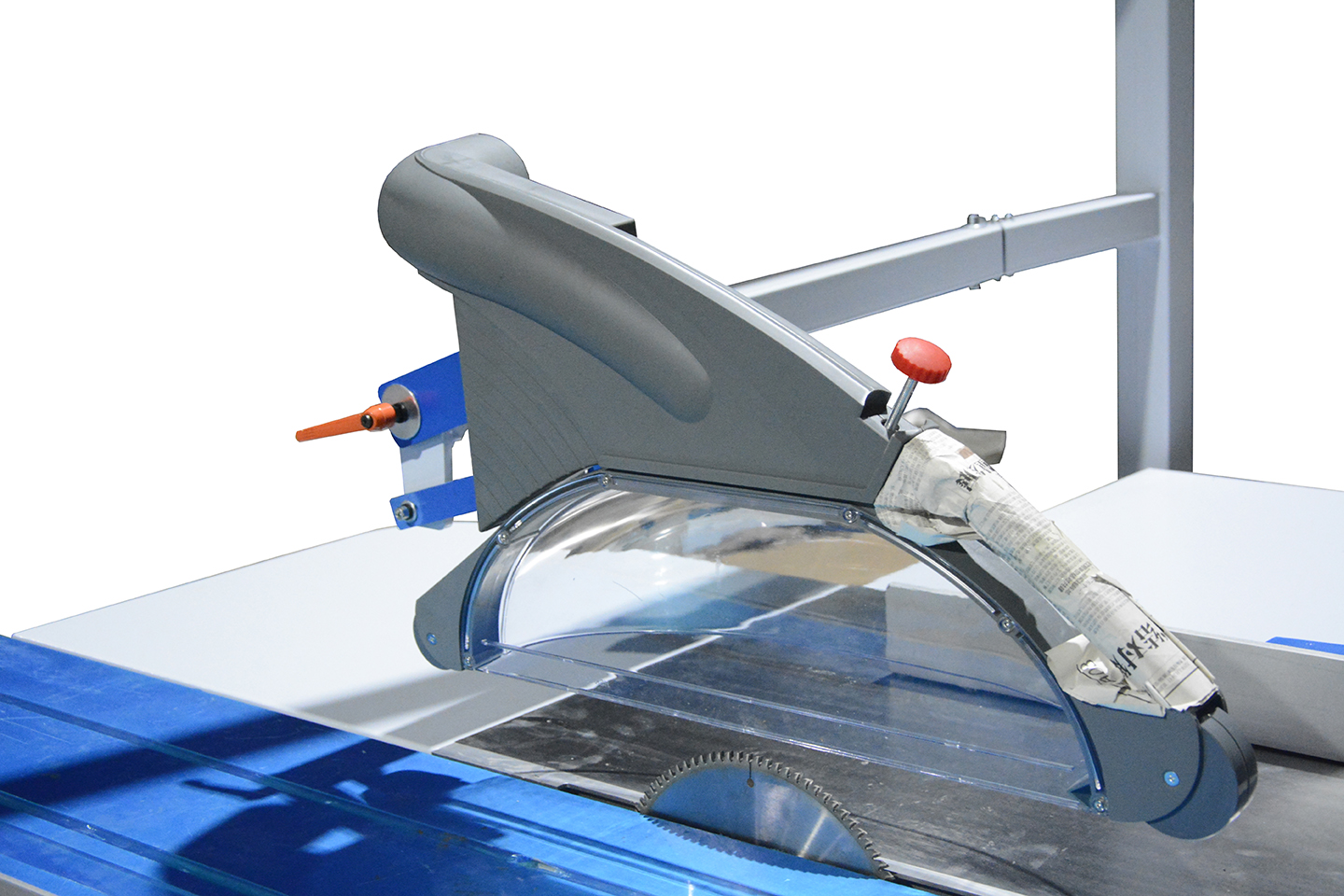

SAW BLADE GUARD
A protective system designed for both 45° and 90° cutting operations, featuring:
Clear visibility of workpiece during cutting
Enhanced dust collection efficiency

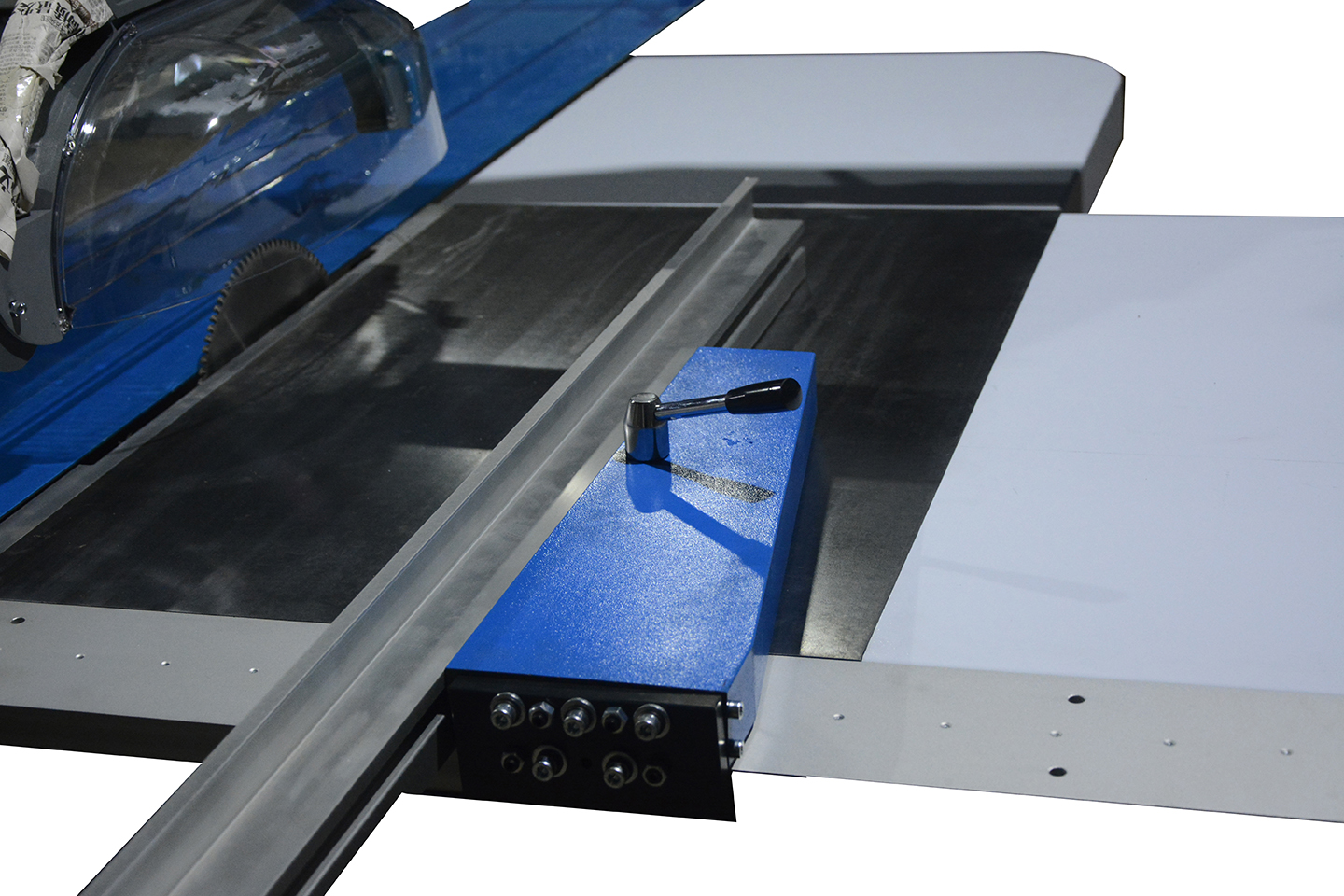

CNC-CONTROLLED FIXED TABLE STOP
This CNC-operated fixed table stop features:
1250mm maximum extension capacity
Adjustable ruler mechanism to prevent saw blade contact during 45° cuts
Model | J-CNC3200 | |
Dimension of Sliding Table | mm | 3200x435 |
Width of Cut Between Saw Blade and Rip Fence | mm | 1250 |
Diameter of Saw Blade | mm | φ300-350mm |
Diameter of Scoring Saw Blade | mm | φ120 |
Speed of Main Saw Spindle | rpm | 4000/6000 |
Speed of scoring saw spindle | rpm | 8000 |
Cutting length | mm | 3000 |
Main Spindle Diameter | mm | φ30 |
Scoring Spindle Diameter | mm | φ20 |
CNC control Tilting Degree | 45°, 90° | |
CNC control main sawblade height | ||
Height of Cut at 90° | mm | 80(φ300mm sawblade) |
Height of Cut at 90° | mm | 105(φ350mm sawblade) |
Height of Cut at 45° | mm | 55(φ300mm sawblade) |
Height of Cut at 45° | mm | 70(φ350mm sawblade) |
Main Motor Power | kw | 5.5 |
Scoring Motor Power | kw | 1.1 |
Weight | kg | 900 |
Main body packing dimensions | mm | 2200x1250x1200 |
Sliding table packing dimensions | mm | 3200x520x280 |
Screen packing size | mm | 1500x200x200 |
